ELECT ECOM
Engineering Convenience
|
Parameter |
Specifications |
|
Case |
Robust case
with classic finish |
|
Scales |
Interchangeable
scales |
|
Pointer |
Knife edge
pointer |
|
Front Glass
& Bezel |
Easy
replacement |
|
Protection |
Standard back
cover (IP20) for user safety and IP52 protection from the front side |
|
Case Material |
10%
glass-filled PC material conforming to UL 94 V-0 grade (non-flammable and
self-retardant) |
|
Standards |
IEC/DIN/EN
60051, DIN 43802, DIN 43700, IEC 61010 |
|
Working
Temperature |
0°C to +50°C |
|
Storage
Temperature |
−25°C to
+65°C |
|
Relative
Humidity |
75% annual
average, non-condensing |
Analog panel meters are precise instruments for monitoring electrical parameters in circuits.They feature a pointer mechanism that responds proportionally to the input signal.Often installed on machinery panels or control boards, they offer continuous measurement.

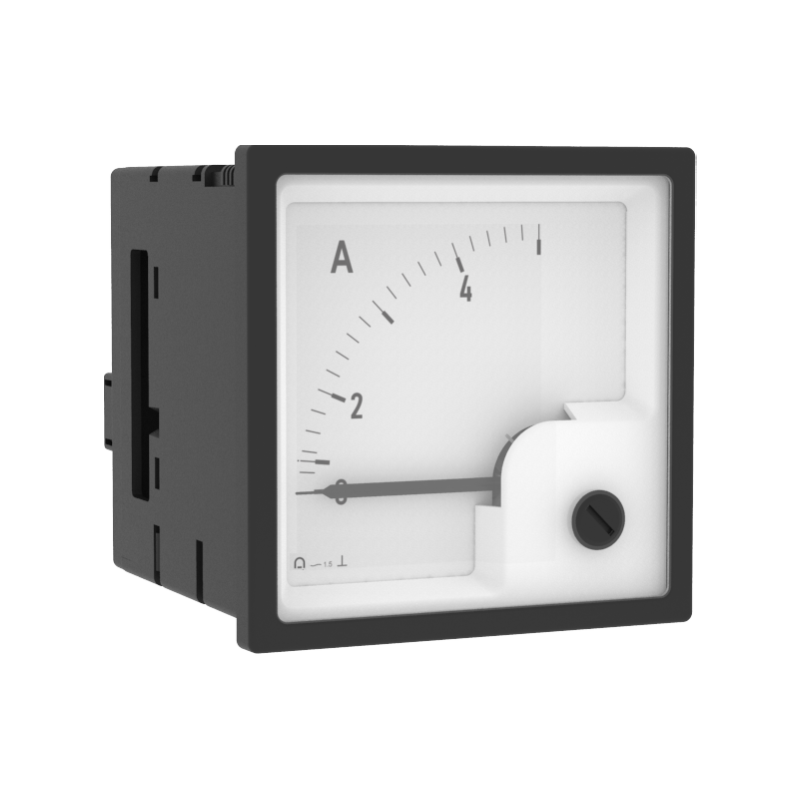

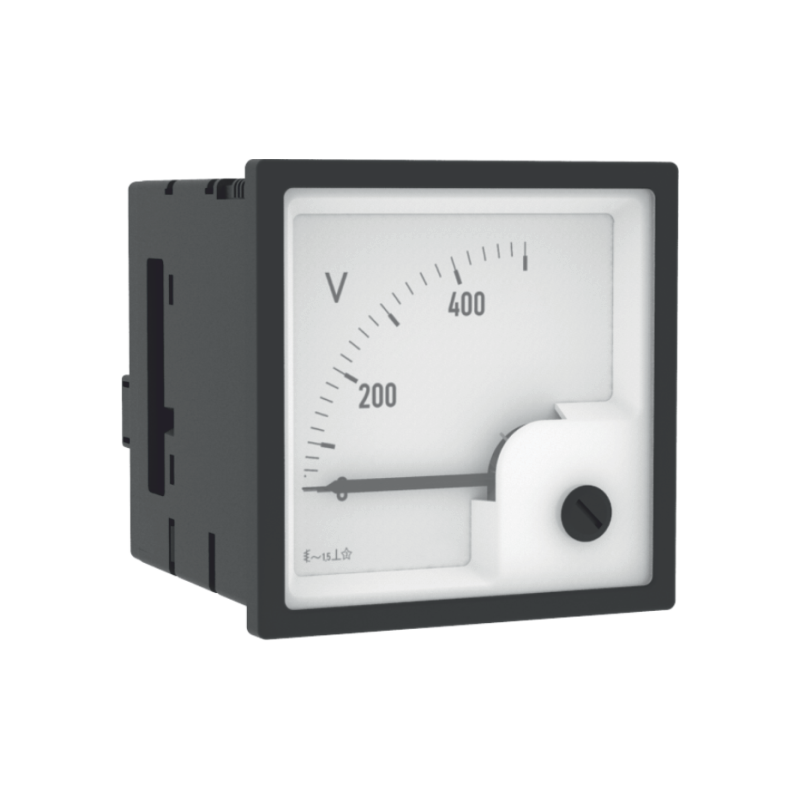

They allow operators to detect fluctuations immediately through visual feedback.Available in various types, such as moving-coil for DC and moving-iron for AC applications.
They are valued for robustness and minimal sensitivity to power surges.
Industries, laboratories, and automation systems rely on them for dependable performance.No complex digital circuits are required, reducing potential points of failure.The design ensures quick setup, low maintenance, and long service life.Key selection factors include accuracy, scale divisions, and pointer responsiveness.They are suitable for monitoring, regulation, or protective purposes in circuits.Analog panel meters remain a cost-effective solution for real-time electrical monitoring.
|
Parameter |
Specifications |
|
Case |
Robust case
with classic finish |
|
Scales |
Interchangeable
scales |
|
Pointer |
Knife edge
pointer |
|
Front Glass
& Bezel |
Easy
replacement |
|
Protection |
Standard back
cover (IP20) for user safety and IP52 protection from the front side |
|
Case Material |
10%
glass-filled PC material conforming to UL 94 V-0 grade (non-flammable and
self-retardant) |
|
Standards |
IEC/DIN/EN
60051, DIN 43802, DIN 43700, IEC 61010 |
|
Working
Temperature |
0°C to +50°C |
|
Storage
Temperature |
−25°C to
+65°C |
|
Relative
Humidity |
75% annual
average, non-condensing |
